Understand whether nanoscale precipitate geometry can help structural alloys recover defects faster than irradiation creates them.
FeNiAl · collision cascades · defect evolution
Morphological Effect of Microstructures on Anti-irradiation Tolerance of FeNiAl Superlattice Alloys
A multiscale simulation programme exploring how FeNiAl microstructures reshape primary radiation damage in an iron matrix.
Goal
Why this problem matters
The research is organised by scientific question rather than career stage, so the methods and results form one continuous programme.
Support longer-lived materials for nuclear and fusion environments, where radiation tolerance limits component lifetime.
Method
How the problem is approached
- 01
Construct

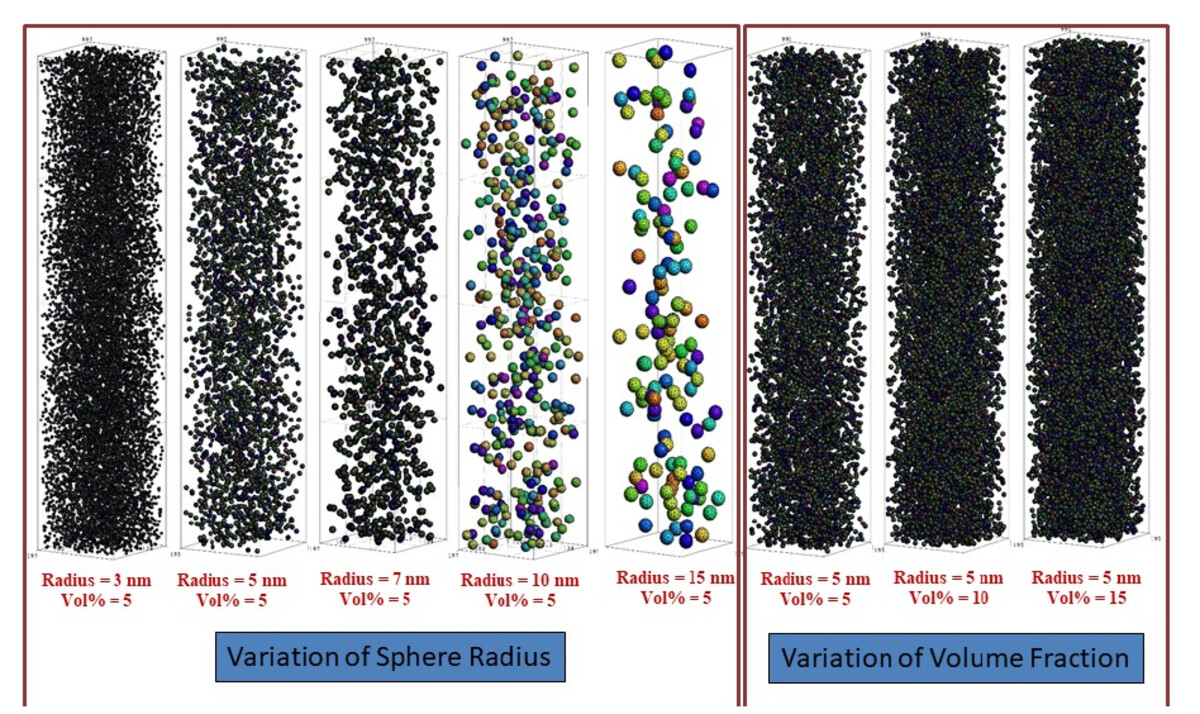

Generate three-dimensional FeNiAl nanoprecipitate geometries and simulate primary damage with IM3D.
- 02
Couple

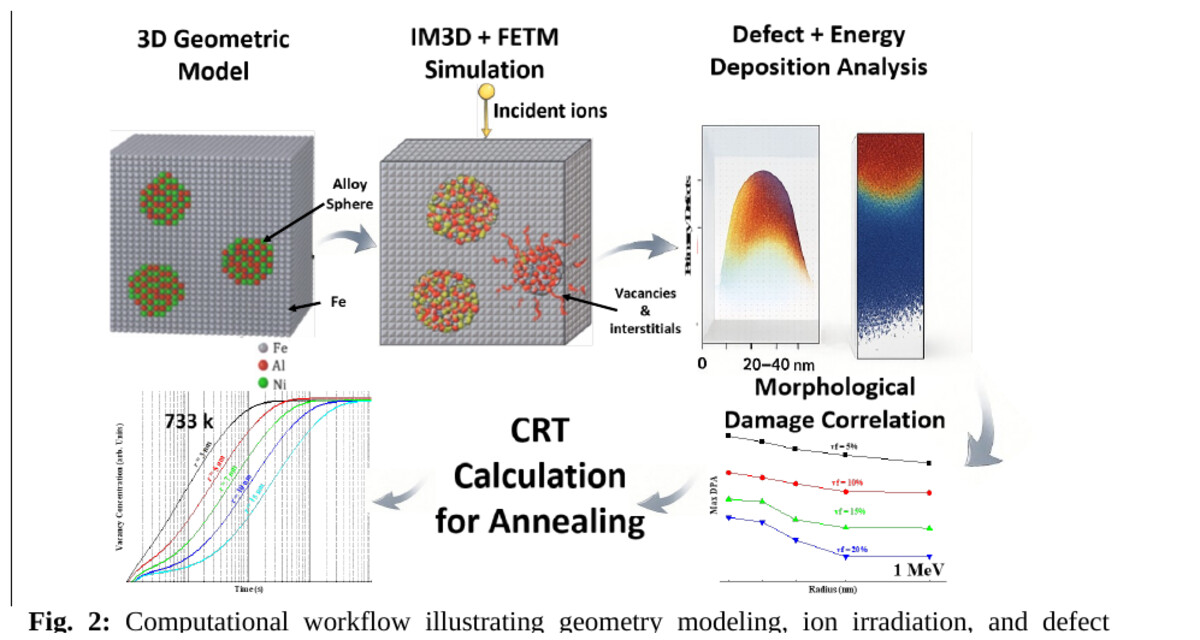

Pass cascade output through a self-developed chemical rate-theory annealing code and MMonCa object kinetic Monte Carlo.
- 03
Validate
Use bridge codes, format translation, consistency checks, and regression tests to keep the coupled IM3D → CRT → MMonCa workflow physically consistent.
Results
What the programme has established
- Result 01The manuscript reports that morphology strongly changes how irradiation damage is distributed and retained across the alloy, even when composition is held fixed.

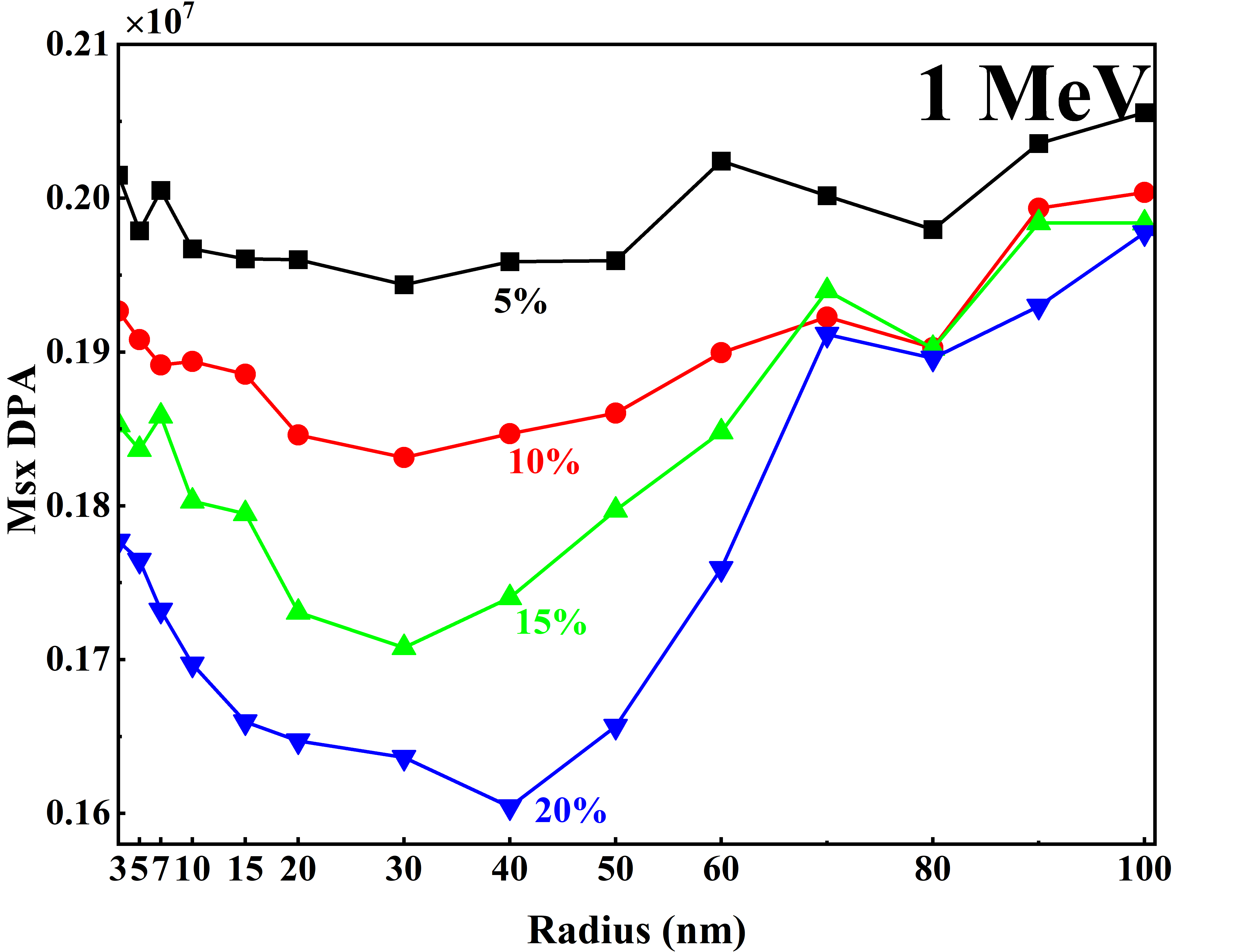

- Result 02The morphology sweep identifies an intermediate-radius, 20 vol% precipitate design as the best-performing regime; the supplied poster reports a peak-damage minimum near 40 nm and a recovery minimum at an intermediate radius.
- Result 03The work produced a cascade-annealing code and coupling utilities for the three simulation stages.
Scientific animation
The mechanism, made visible
This interactive figure is an explanatory schematic. It is clearly separated from the peer-reviewed quantitative figures below.
Conceptual visualization
Primary damage and a collision cascade
An ion—or a primary knock-on atom created by neutron scattering—transfers momentum through nuclear collisions. Branching recoils displace lattice atoms and leave vacancy–interstitial pairs.
Ready
- Incident ion / PKAFor neutron irradiation, a nuclear scatter first creates the PKA
- Recoil pathMomentum transferred through successive nuclear collisions
- VacancyHollow ring: the atom's original lattice site is empty
- InterstitialFilled sphere: a displaced atom rests between lattice sites
- Active mechanism
- Displacement damage
- Current stage
- Vacancies and interstitials form Frenkel pairsLabels and paths belong only to the active mechanism
- Damage unit
- Frenkel pairOne vacancy plus one interstitial
- Status
- Explanatory schematicNo illustrative path or count is presented as measured data
Mechanisms are separated by projectile and outcome. Electron-signal labels follow electron-transport physics; the damage mode follows binary-collision and primary-damage terminology.
Evidence
Figures from the research
Each figure is placed beside the scientific programme it supports rather than repeated in a separate gallery.
Publications
Related scholarly work
Manuscript status
View all publications →The related manuscript is identified above as under review. No publisher or preprint link is available in the supplied source material.
Funding
Supported research
3D Monte-Carlo simulation of the anti-irradiation effect of superlattice nanoparticle composites
National Natural Science Foundation of China (NSFC)
- Grant
- W2533023
- Funding
- ¥180,000
3D radiation-resistance simulation of superlattice nanocomposites
National Foreign Experts Project (Y Category), State Administration of Foreign Experts Affairs, China
- Grant
- Y20240239
- Funding
- ¥200,000
